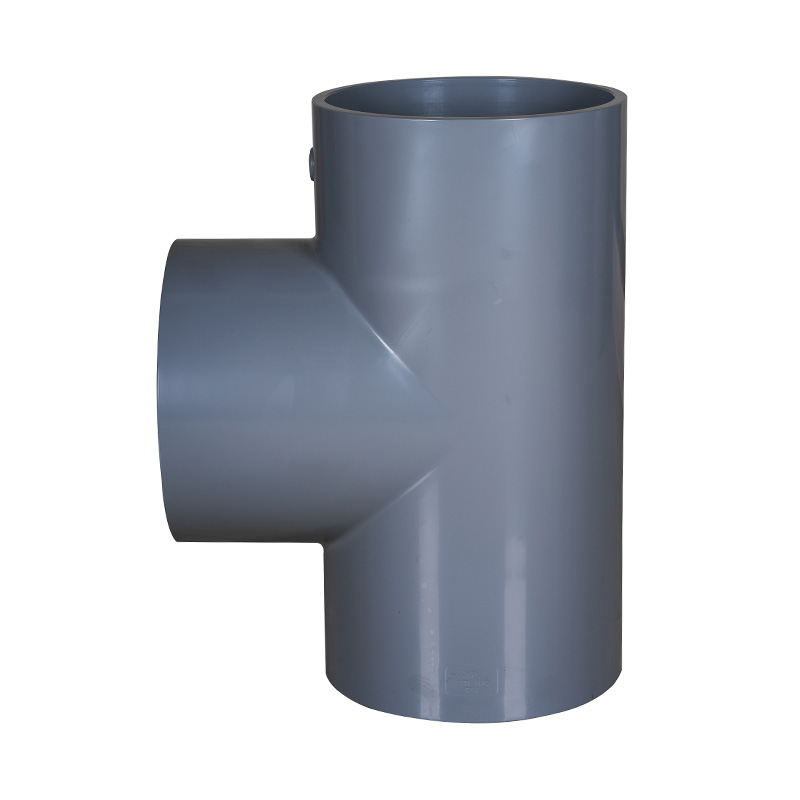

PVC-C Tee DN15-600 GB Standard

Factory Price Light Gray PVC-C Tee Equal Shape Plastic Pipe Fittings DN15-DN600 Water Pipe Fittings Straight Tee Fittings for Drainage and Sanitation
Place of Origin: China
Brand Name: KXPV
Material: PVC-C
Technics: Forged
Connection: socket
Shape: Equal
Head Code: Square
Color: Light Gray
Sizes: DN15-DN600
Application: Industry
Packing: Carton Box
Delivery Time: 7 Days
MOQ: 1 Piece
Working Pressure: 1.0MPA

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. Superior Chemical Resistance: Wide operating temperature range -20°C to 95°C, heavy ion content in the medium meets ultrapure water standards, and hygienic properties meet national health standards.
2. Excellent strength, toughness, and chemical corrosion resistance.
3. Durability: Excellent aging and UV resistance significantly extend the service life of other piping systems.
4. Low thermal conductivity: Approximately 1/200 that of steel; self-extinguishing flame retardancy.
5. Lightweight: Lightweight, equivalent to 1/5 of steel pipe and 1/6 of copper pipe.
6. Low resistance, high flow rate: Smooth, clean pipe surface, minimizes friction and adhesion when conveying fluids.
7. Easy installation, low cost: Adhesive and threaded connections are available, with glue being the most convenient.

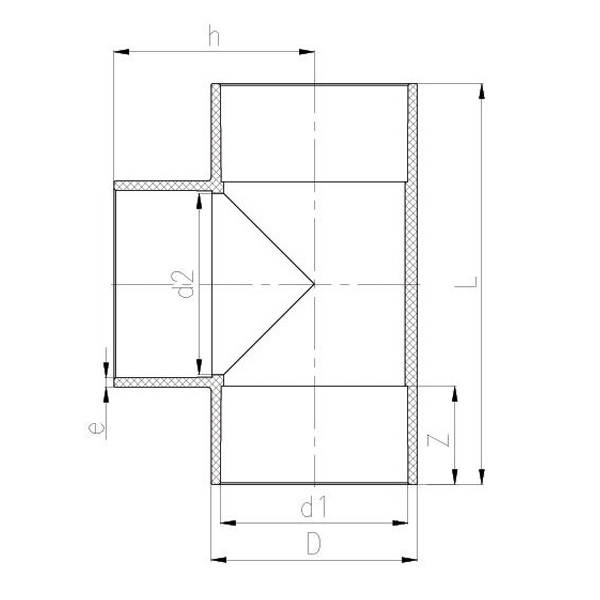

Dimension List

DN D d1 d2 L Z h e
15 27 20 18 56 16 28 3.5
20 32 25 22 66 18.5 33 3.5
25 40 32 29 80 22 40 4
32 50 40 37 99 26 49.5 5
40 61 50 47 120 31 60 5.5
50 75 63 59 148 38 74 6
65 88 75 71 169 43.5 84.5 6.5
80 104 90 86 198 51 99 7
100 127 110 105 238 61 119 8.5
125 161 140 135 298 76 149 10.5
150 184 160 154 338 86 169 12
200 249 225 219 484 118.5 242 12
250 308 280 270 595 146 297.5 14
300 346 315 310 662 163.51 331 15.5
350 390 355 340 749 184 374.5 17.5
400 440 400 386 840 206 420 20
450 494 450 430 944 231 472 22
500 540 500 480 1040 256 520 20
600 692 630 591 1772 321 886 30
700 758 710 675 1902 361 951 22.5
